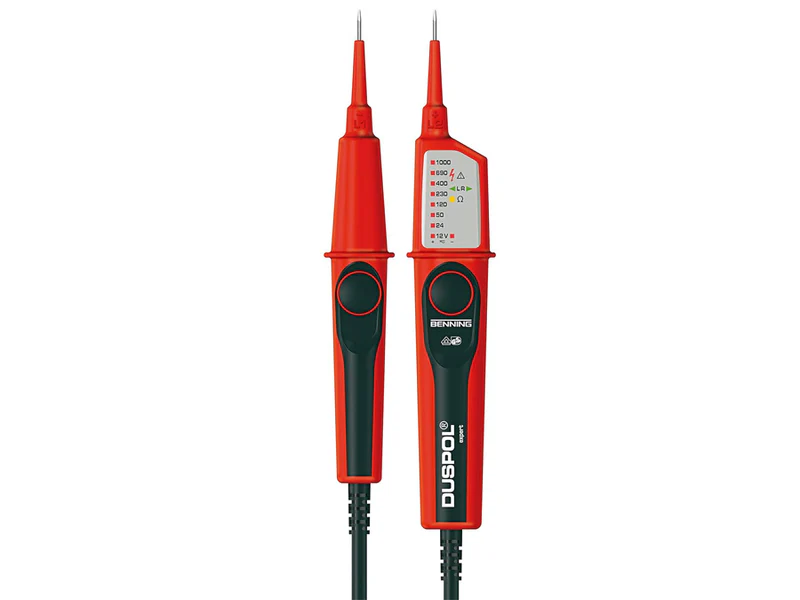

BENNING Voltage & Continuity tester DUSPOL EXPERT V2

indication

LED

Voltage range

12 – 1000 V AC/DC

continuity test

yes / buzzer + yellow LED

phase-sequence test

yes / green LED
(left / right)

single-pole / phase test

yes / red ⚡ LED

polarity test

yes / LED

load connection
via push buttons

IS = 550 mA
(1000 VDC)

30 mA FI triggering
via push button

yes

vibrating alarm

yes

measuring point illumination

yes

resistance measuring

-

diode test

pass - / reverse direction

frequency measuring

-

non-contact phase tester cable / break detector

yes / yellow LED (flashing)

protection class

IP 65

overload class

CAT IV 600 V
CAT III 1000 V

VDE / GS approval

yes
