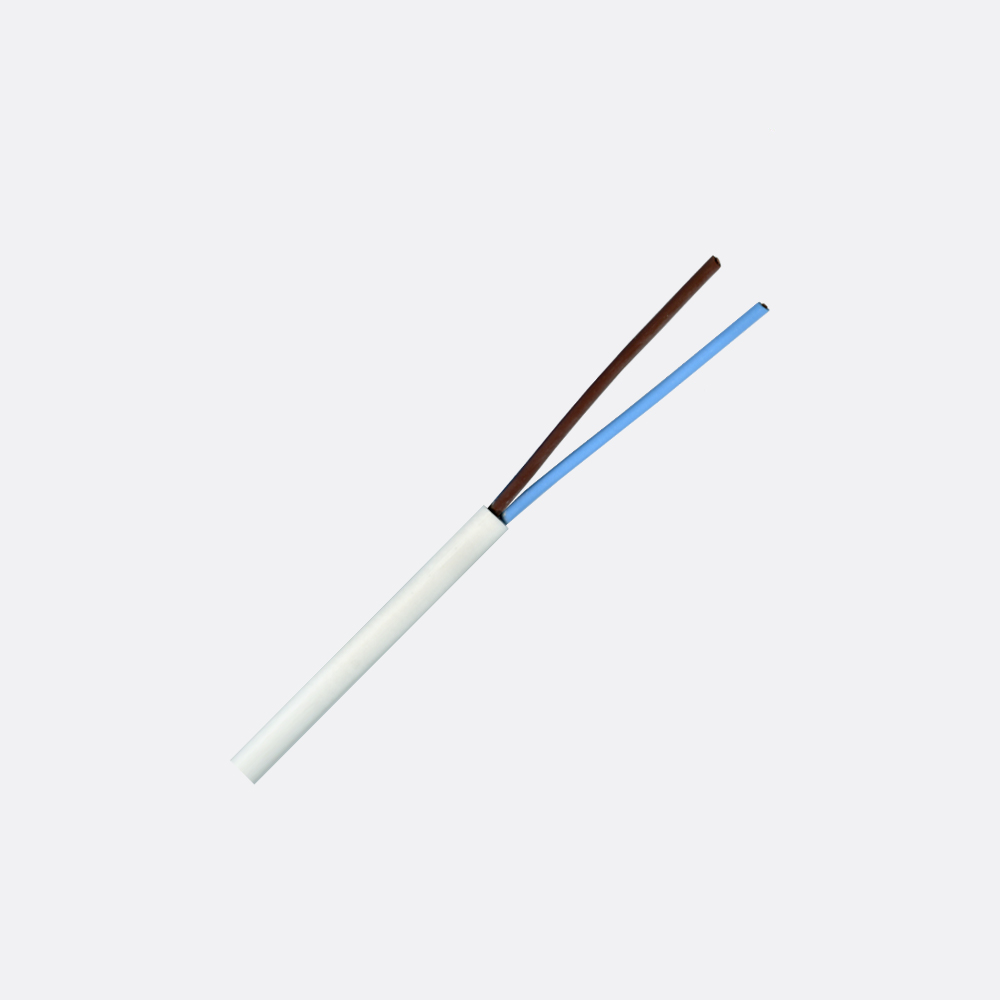

2 x 0.75mm² – FMC02/0.75 Multicore Flexible Cable
2 Core 24/.20 (.75 mm sq ,7.5amp) .P.C.W. V75 PVC insulated.
4V75 P.V.C. sheathed. Flexible cord.
250/440 Volt to AS3191 SEC APPROVAL V98005
Construction
Conductor: 24 strands of 0.20 mm Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.
Max. D.C. resistance at 20C : 26.07 ohms / klm.
Insulation: Coloured V75 PVC to AS3808
Nominal Diameter : 2.4 mm.
Nom. Wall Thickness: 0.6 mm.
Lay Up: 2 Cores laid up.
1. Brown
2. Blue.
Sheath: Coloured P.V.C. type 4V75 to AS3808.
Nominal Diameter: 6.55 mm.
Nom. Wall Thickness: 0.8 mm.
Identification: Indented into Sheath at intervals not exceeding 500mm. “TYCAB 75c APPROVAL V98005 “
