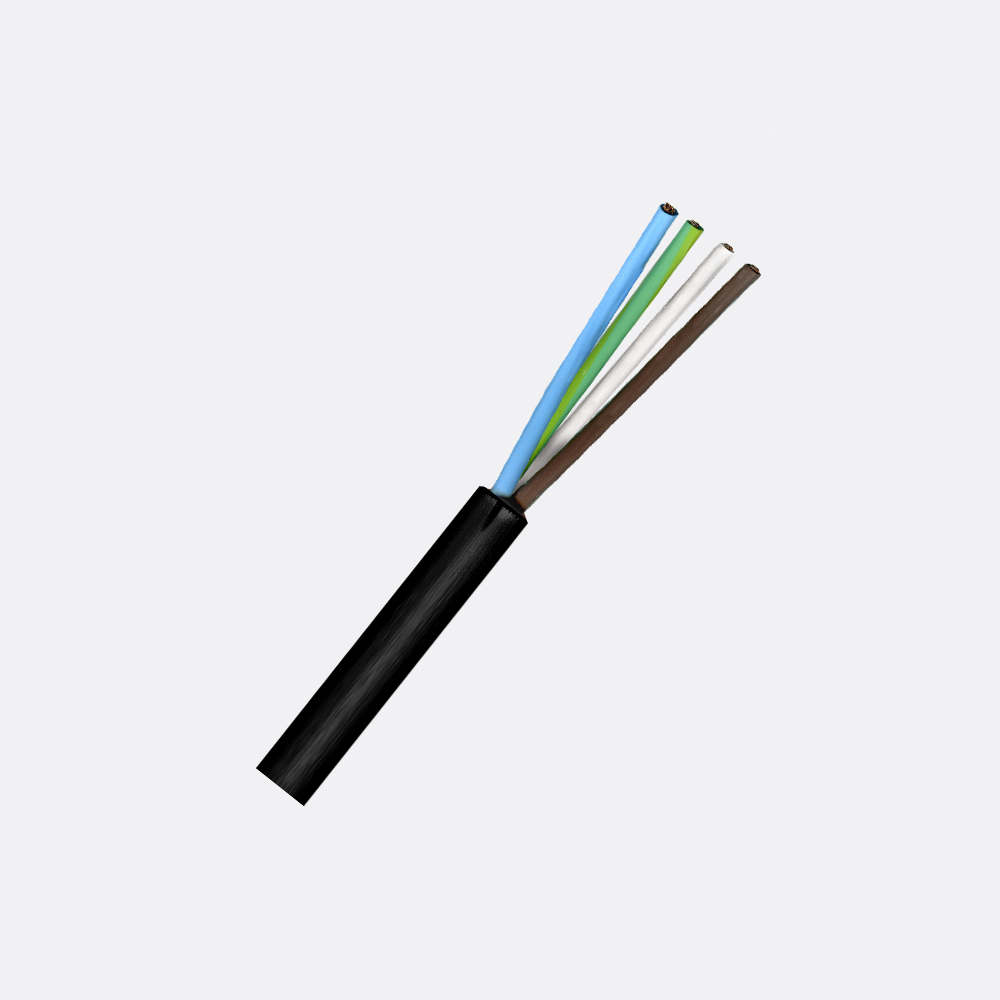

4 x 2.5mm² – FMC04/2.5 Multicore Flexible Cable
4 Core 50/.25 (2.50mm sq. 20 AMP) .P.C.W. V90 PVC insulated.
5V90 P.V.C. sheathed. Flexible cord.
250/440 Volt to AS/NZS3191
Construction
Conductor: 50 strands of 0.25 mm Annealed Copper to AS/NZS1125 drawn from Class 102 copper to AS/NZS1574.
Max. D.C. resistance at 20C: 8.0 ohms / klm.
Insulation: Coloured V90 PVC to AS/NZS3808.
Nominal Diameter: 3.6 mm.
Nom. Wall Thickness: 0.8 mm.
Lay Up: 4 Cores laid up.
1. Red
2. White
2. Light Blue
3. Green/Yellow
Sheath: Coloured P.V.C. type 5V90 to AS/NZS3808.
Nominal Diameter: 11.2 mm.
Nom. Wall Thickness: 1.1 mm.
Identification: Indented into Sheath at intervals not exceeding 500mm. “TYCAB V90 250/440 ORDINARY DUTY TE “
