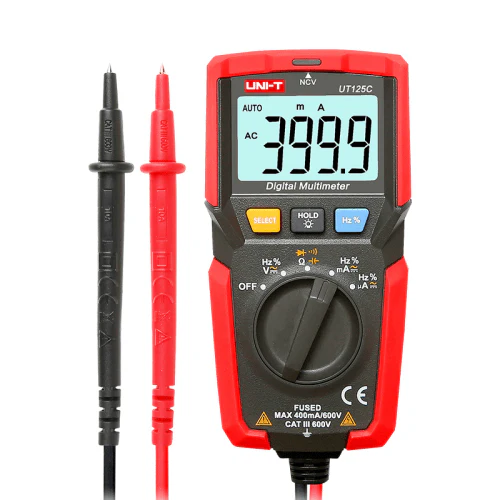

UT125C Pocket Size Digital Multimeter
$ 51.99 + GST
This product is CE/cETLus certified and complies with CAT III 600V
Description
Description
UT125C is a pocket-size, ergonomic and reliable multimeter with 4000 display counts. It is a useful tool for electronics DIYers working with low currents (< 0.4A). This product is CE/cETLus certified and complies with CAT III 600V.
FEATURES:
- Small size, easy to carry and operate
- 600V DC/AC voltage measurement
- 400mA DC/AC current measurement
- Resistance/Capacitance/Diode/Continuity test
- Frequency/Duty cycle measurement
- CE (EMC, LVD, RoHS), cETLus
- CAT III 600V
- 1m drop proof.
INCLUDES:
1 x UT125C, English manual, 2 x AAA Batteries and 12-Month Warranty.
SPECIFICATIONS:
| Specifications | Range | UT125C |
| DC voltage (V) | 600V | ±(0.5%+5) |
| AC voltage (V) | 600V | ±(1.2%+5) |
| DC current (A) | 400mA | ±(1.8%+5) |
| AC current (A) | 400mA | ±(2%+8) |
| Resistance (Ω) | 40MΩ | ±(1%+5) |
| Capacitance (F) | 100μF | ±(4%+10) |
| Frequency (Hz) | 10Hz~60kHz | ±(0.1%+5) |
| Duty cycle | 20%~80% | Reference |
| Features | ||
| NCV | √ | |
| Diode test/Continuity test | √ | |
| Low battery indication | √ | |
| Data hold/auto power-off | √ | |
| Operating temperature | 0℃~50℃ | |
| General Characteristics | ||
| Power | 1.5V AAA batteries (R03) x 2 | |
| Display | 38mm x 23mm | |
| Product Colour | Red and grey | |
| Product net weight | 180g | |
| Product size | 112mm x 58mm x 35mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Box, English manual | |
Additional information
| BRAND | UNI-T |
|---|
