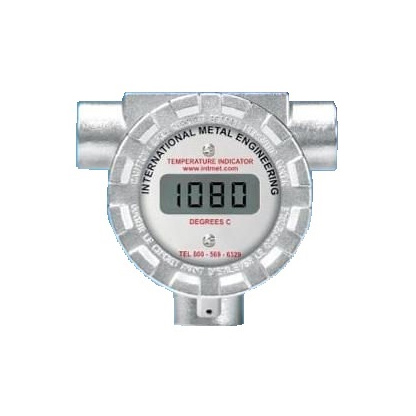

Loop powered field Indicator, IM-8080PP-AL

The IME 8080PP field indicator is a rugged  metal housed unit with two M20 x 1.5 electrical connections. Display range is -999 to 9999. Low voltage drop means that it is possible to install a PR Electronics head mount transmitter below the display to give the full functionality for a two wire loop powered universal transmitter. By using PR5335 series, full HART compatibility is assured. The voltage drop would be 10.2V  for both devices combined

• 4 digit LCD display in engineering units
• Calibrate via membrane switches on the front panel
• Voltage drop 2.2V at 20mA
• Operating Temperature -20+50ºC
• Housings Epoxy Painted low copper Al or SS316 (optional)
• Accuracy 0.1% ± 1 digit

Optional accessories:

• Mounting bracket
• Temperature sensor
