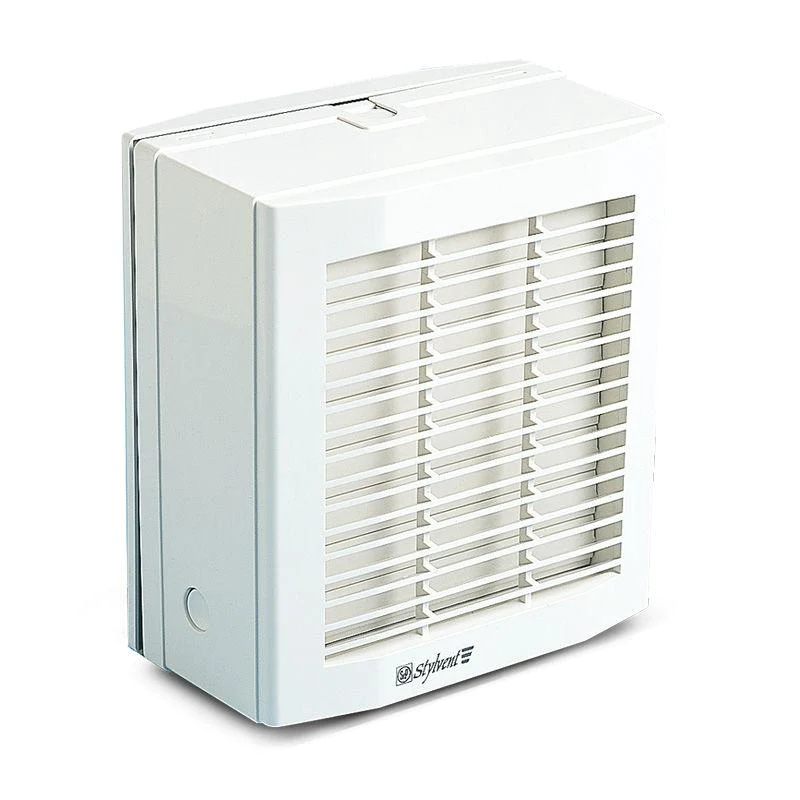

Fantech Stylvent HV-150AE 150mm Wall/Window Fan

The Stylvent Series can be wall or window mounted and is suitable for a wide range of applications. The 230 and 300 models can be wired for exhaust or supply mode or dual purpose using an optional reversing switch.

Features

• Available in 3 sizes for 230V supply.
• Models 230 and 300 are suitable for supply or exhaust applications. Model 150 is suitable for exhaust only.
• For applications requiring both supply and exhaust a reversing switch is available.
• Electric shutters prevent outside air entering building when fan is switched off.
• IPX4 rated.
• Tough and long lasting ABS plastic.
• Maximum ambient of 40°C.
• Optional weather Cap for protection against harsh external conditions.
• For wall mounting, a kit of threaded “wall rods” and sleeves can be supplied as an optional extra. Caters for walls ranging in thickness from 25 to 300mm.

Construction
Weather and impact resistant plastic housings.

Motors
Type – the HV-150 is shaded pole and the HV-230 and 300 are external rotor motor.
Electricity supply – single-phase, 230V, 50Hz.
Bearings – sleeve on the HV-150 and ball on the HV-230 and 300.
Single-speed – not suitable for speed control.

Internal Thermal Protection
150 – internal fuse; 230 and 300 – auto-reset type.

Testing
Airflow to ISO5801:1997
Noise to BS848:Part 2, 1985

Special Features
The Stylvent Series of wall/window fans shall be as supplied by Fantech Pty. Ltd. and be of the model numbers shown.
