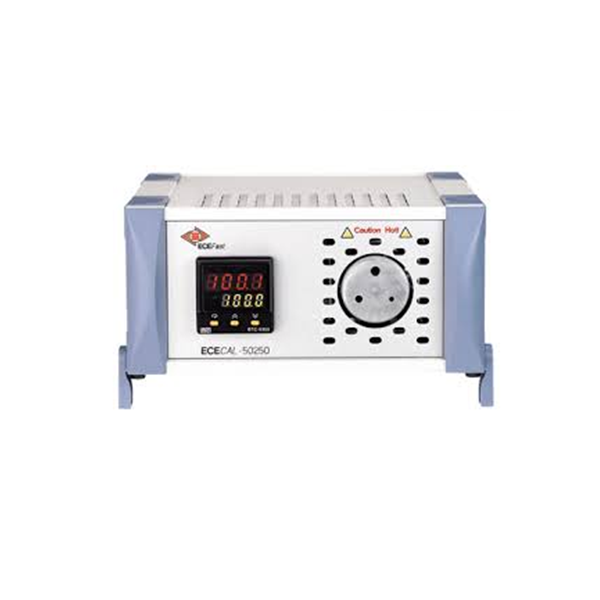

Dry block temperature calibrator

The ECECAl 50250 is delivered, certified & ready to operate on 240V mains supply. It is used to check the performance of temperature probes on-site, while connected to their control or monitoring system. It can also be used in the laboratory to check probes with a certified reference thermometer. The well depth is 100mm on the 4.5 and 6mm holes and 60mm for the 3mm holes [these are clearance sizes to suit standard probes]

The ECECAl 50250 especially suits industries such as the plastics industry where it enables checking of probes, and controllers at the same time, but is widely sold for on site verification of autoclave thermocouples

• Range : Ambient to 250°C  – optionally extended to 300°C
• Resolution :  0.1°C
• Accuracy :  ±1.0°C at 150°C
• Accepts most probe sizes 3, 4.5 & 6mm
• Well depth 100mm for 4.5 & 6.0 dia and 60mm for 3dia
• Heat to 250°C in 15min
• Cool to 100°C in 15 min
• Computer interface for ramp control & data acquisition – optional.
• Custom block drilling – optional

This product is shipped with a free NATA certificate.
