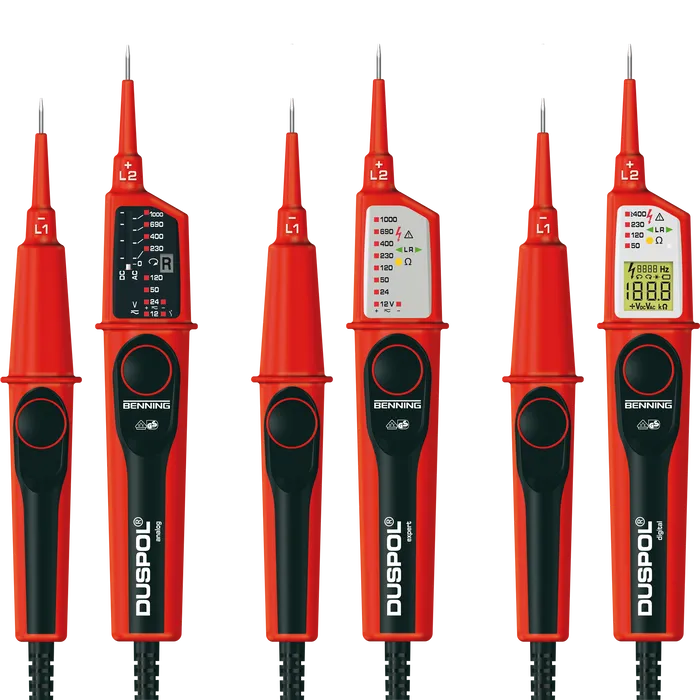

BENNING Voltage tester DUSPOL ANALOG V2

Features:
• Tested and approved in line with international standard IEC/EN 61243-3 (DIN VDE 0682-401), CAT IV 600 V and CAT III 1000 V
• Vibration alarm for safe voltage detection
• High resistance voltage test without push-button activation
• Switchable load circuit, eliminates measuring errors due to reactive capacitive and inductive voltages caused by intended load connection via push buttons
• Intentional triggering of 30-mA RCD
• Arrow shows direction of rotary field
• Safe single-pole phase test
• Accurate illumination of measuring point
• Impact-resistant, dust-proof and water-jet-proof (IP 65)
• CAT IV 600 V and CAT III 1000 V

Display: LED/moving coil
LED display levels: 12 - 1000 V AC/12 - 1000 V DC
Rotary field test: Yes/LCD symbol "R"
Single-pole phase test: Yes/LCD symbol "R"
Polarity test: Yes/LED
Manual load connection via push button: IS = 600 mA (1000 V DC)
30 mA FI triggered via push button: Yes
Vibration alarm: Yes
Protection type: IP 65
Over-voltage category: CAT IV 600 V/CAT III 1000 V
VDE/GS approval: Yes
