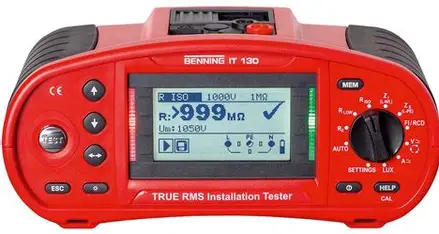

BENNING IT 130 Installation Tester

Features

• bidirectional interfaces (USB / RS 232)

• measured value memory covering four levels (object / block / fuse / measuring point)

• upload of installation structures and download of measured values

• integrated real-time clock (measured value with date/ time)

• unambiguous "PASS" /  "FAIL" indication by means of green / red LED on the tester and on the switchable "Commander" probe tip

• "Commander" probe tip with "TEST" and "MEM" key as well as bright LED measuring point illumination

• all measuring functions can be selected directly by means of a rotary switch

• memory of measured values for 1800 measurements

• graphic display with background lighting, help function with connecting diagram

• power supply by means of six NiMH storage batteries (AA)

• device with integrated storage battery charging function




display

graphic display (illuminated)

low-impedance resistance

0.01 Ω – 2 kΩ

insulation resistance

10 kΩ – 1000 MΩ

line impedance (L-N / L)

0.01 Ω – 10 kΩ

loop impedance (L-PE)

0.01 Ω – 10 kΩ

short-circuit current

0.01 Ω – 200 kA

RCD testing of types AC / A / F, B / B+ and EV / MI

tripping time, tripping current (ramp), contact voltage, automatic testing (AUTO)

rotary field

yes

voltage (TRUE RMS), frequency

1 V – 550 V, 0 Hz – 500 Hz

earth resistance

0.01 Ω – 2000 Ω (by means of earthing set)

current (TRUE RMS)

0.1 mA – 400 A (by means of clamp)

luminous intensity

0.01 lux – 20 klux (by means of sensor)

measured value memory

up to 1800 measuring results

interfaces (bidirectional)

USB, RS 232

incl. software

yes

scope of delivery

case, PC software, USB / RS 232 cabel, switchable "Commander" probe tip, testcabel with shock-proof plug,
universal three-wire test cable (L = 1.5 m), 3 x test prob / crocodile clips, charger with 6 NiMH storage batteries (AA),
calibration certificate
