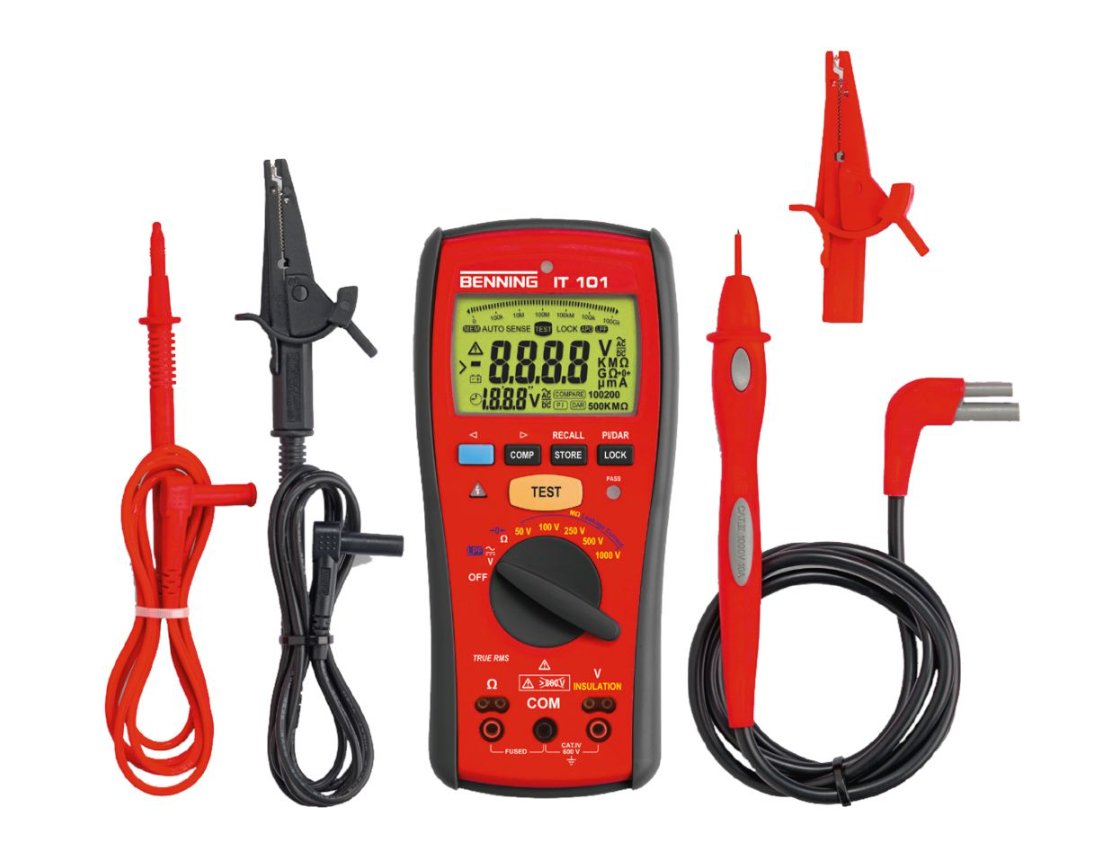

BENNING IT 101 Insulation & Resistance Tester

measurement of insulating resistance and calculation of the resulting leakage current
testing voltages of 50 V, 100 V, 250 V, 500 V and 1000 V
selectable limiting values for ISO measurement, green LED for “PASS”, red LED for testing voltage/external voltage
resistance measurement with a testing current of 200 mA for testing protective conductor connections
measurement of polarization index (PI) and dielectric absorption rate (DAR)
switchable probe tip for triggering the measuring process
internal memory for 100 measuring values per measuring function
TRUE RMS voltage measurement with low-pass filter
including case, switchable probe tip, silicone measuring leads, alligator clips, rubber protective frame and batteries

Description

indicating	4000 digit (illuminated)
insulation resistance	50 Ω – 20 GΩ
low-impedance resistance	0.01 Ω – 40 Ω
resistance	0.01 Ω – 40 kΩ
voltage	0.1 V – 600 V_AC/DC TRUE RMS
supplementary function	leakage current, polarization index (PI), dielectric absorption rate (DAR), automatic discharge function, null balance of the measuring leads
measuring category	CAT IV 600 V

BRAND	BENNING
