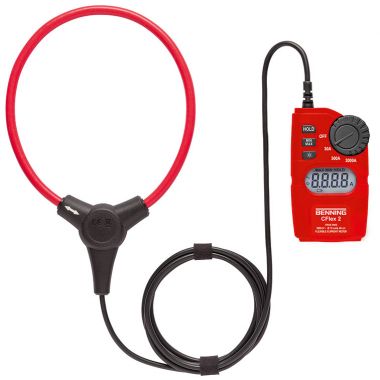

BENNING Current Clamp Digital Meter BENN CFLEX 2

large 4 digit LC display with illumination
safe AC current measurement: 0.1 A – 3000 A (TRUE RMS)
multifunctional and powerful due to TRUE RMS measuring method for industrial applications
direct display of the current intensity in amperes
safe operation with a distance of 1.8 m to the measuring point
data hold function (HOLD), minimum / maximum value storage (MIN / MAX)
Auto-Power-Off (deactivatable)
indication of battery status
highest measurement method CAT IV 600 V allows measurements directly at the source of low voltage installation

Description

indication	4 digit LCD, illuminated
current AC	0.1 A – 3000 A TRUE RMS
measuring ranges	30 A / 300 A / 3000 A
transformer ratio (mV / A) / resolution	0.01 A / 0.1 A / 1 A
measured value memory	HOLD, MIN / MAX
length / diameter of measuring loop	46 cm / 16 cm
cable diameter of the measuring loop	8.5 mm
connecting cable to measuring loop	1.8 m
battery low-voltage indication	yes
output	–
measuring category	CAT IV 600 V
scope of delivery	incl. protection case, 3 x 1.5 V batteries (micro / AAA / LR03)

BRAND	BENNING
