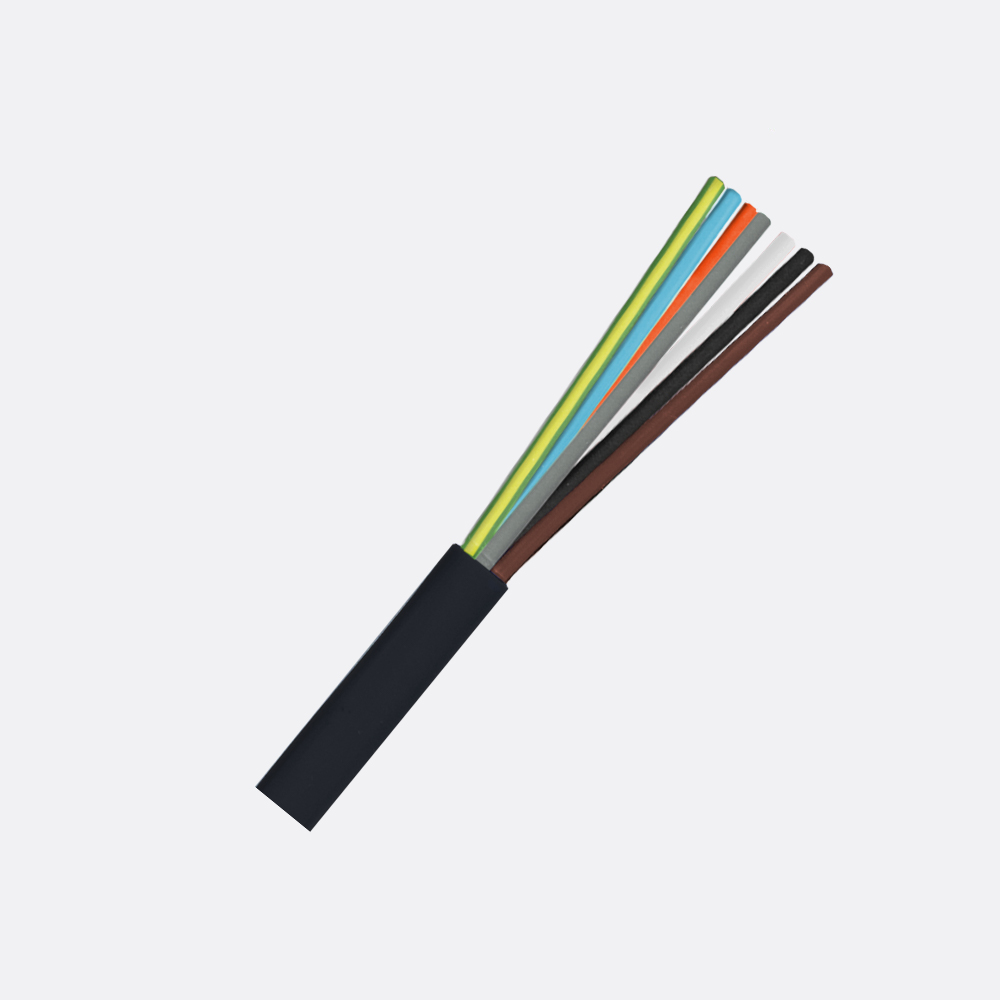

7 x 1.0mm² – FMC07/1.0 Multicore Flexible Cable
7 Core 32/.2 (1.0mmsq). P.C.W.
V90 PVC insulated & 5V90 P.V.C. sheathed Flexible cord.
250/440 Volt to AS/NZS 3191 Ordinary Duty.
Oxygen-Free Copper. RoHS compliant PVC.
Construction
Conductor: 32 strands of 0.2mm nom. Annealed Copper to AS/NZS1125 drawn from Class 110A copper to AS/NZS1574.
Max. D.C. resistance at 20C: 19.5 ohms / km.
Insulation: Coloured V90 PVC to AS/NZS3808.
Nominal Diameter: 2.5 mm.
Nominal Wall Thickness: 0.6mm.
Lay Up: 7 Cores twisted.
1. Brown
2. Black
3. White
4. Grey
5. Orange
6. Light Blue
7. Light Green / Yellow
In rotation sequence.
Sheath: Coloured P.V.C. type 5V90 to AS/NZS3808.
Nominal Diameter: 9.6 mm.
Nominal Wall Thickness: 1.1mm.
Identification: Indented into Sheath at intervals not exceeding 500mm. “TYCAB V90 250/440V ORD DUTY” PRINTED (metre marked) 001M >I<
