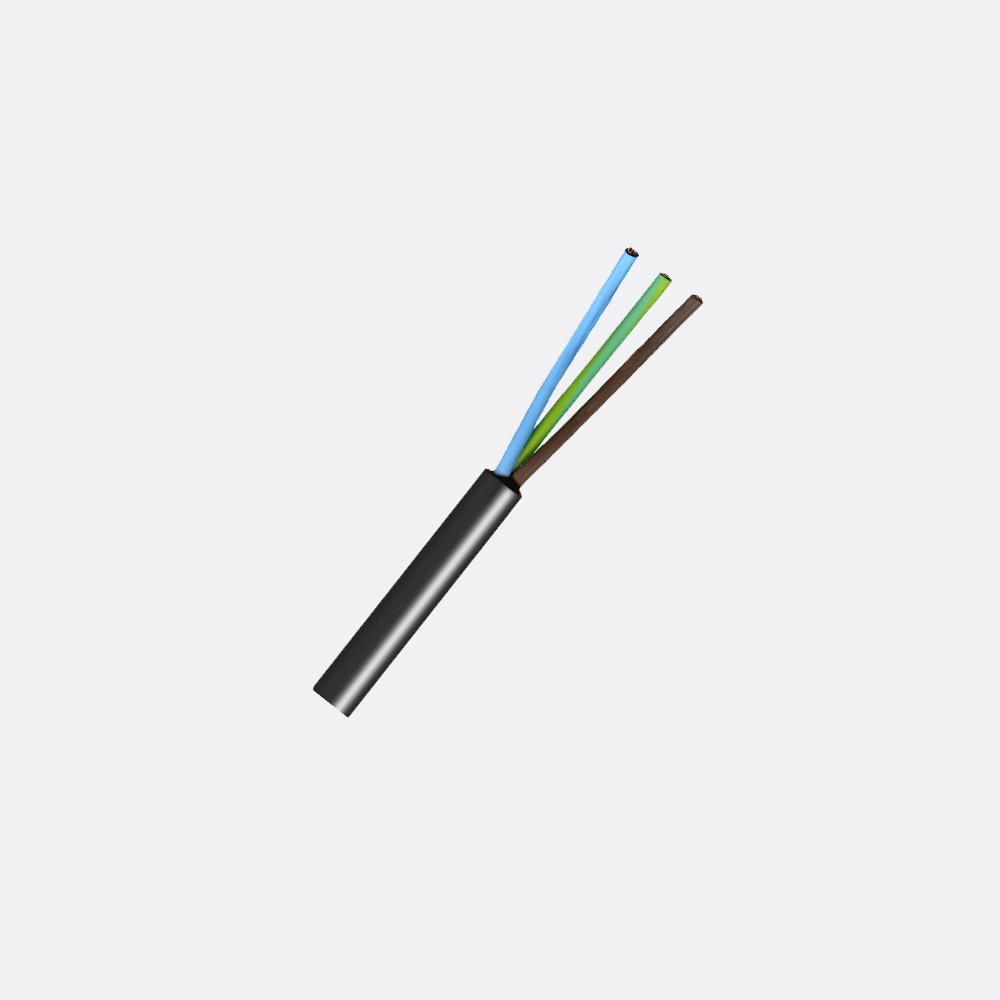

3 x 0.75mm² – FMC03/0.75 Multicore Flexible Cable
3 Core 24/.20 (0.75mm sq. 7.5 AMP) .P.C.W. V90 PVC
insulated. 5V90 P.V.C. sheathed. Flexible cord.
250/440 Volt to AS/NZS3191 APPROVAL V98005
Construction
Conductor:24 strands of 0.20 mm Annealed Copper to AS/NZS1125 drawn from Class 102 copper to AS/NZS1574.
Max. D.C. resistance at 20C: 26.07ohms / klm.
Insulation: Coloured V90 PVC to AS/NZS3808.
Nominal Diameter: 2.3 mm.
Nom. Wall Thickness: 0.6 mm.
Lay Up: 3 Cores laid up.
1. Brown
2. Blue
3. Green/Yellow
Sheath: Coloured P.V.C. type 5V90 to AS/NZS3808.
Nominal Diameter: 6.7 mm.
Nom. Wall Thickness: .8 mm.
Identification: Indented into Sheath at intervals not exceeding 500mm. “TYCAB V98005 V90 250/440 ORDINARY DUTY “
